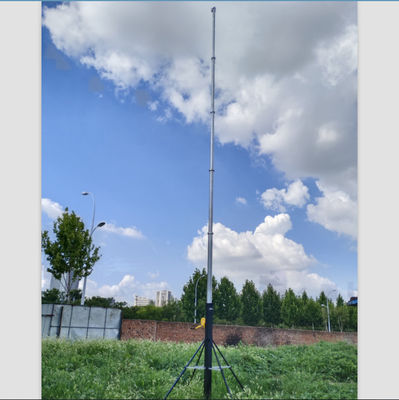

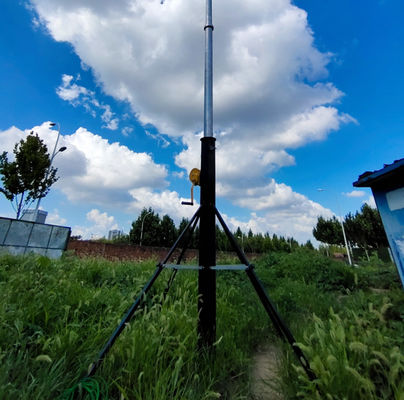

6m Aluminum Telescoping Antenna Mast Hand Crank Up Light Weight 20 Foot Tv Antenna Mast
| Place of Origin | Jiangsu |
|---|---|
| Brand Name | QJ |
| Model Number | HW09 |
| Minimum Order Quantity | 1 set |
| Price | 280 |
| Packaging Details | carton |
| Delivery Time | 15 days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 300 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum | Max Load | 15KG |
|---|---|---|---|
| Sections | 5 | Extend Height | 9m |
| Retracted | 1.8m | Tripod | Yes |
| Color | Yellow,blue,black | ||
| Highlight | 6m telescopic mast,hand crank up mast,aluminum telescoping antenna mast |
||
You can tick the products you need and communicate with us in the message board.
| model numner | HP series | |
|---|---|---|
| type | antenna pole | |
| place of orginal | Jiangsu China | |
| Full height | 3m--18m | |
| Closed height | 1.2m --2.5m | |
| max payload | 10kg | |
| No.of sections | 3--10 | |
| foot print | 80mm | |
| material | aluminum | |
| color | nature aluminum | |
| optional color | available | |
| top connection | M8 screw |
Product Description
hand crank up mast 20ft antenna mast aluminum telescoping mast 6m light wight
hand push up mast 20ft antenna mast aluminum telescoping mast 6m light wight
we have a wide range of telescopic masts ranging in height from 1.2 metres to over 15 metres extended height, with a range of retracted heights to suit your requirement whether it is for a vehicle or to be field mounted. Taller masts can be mounted to vehicles using one of our roof trolley systems.
The individual sections are interlocked with aluminum collar which has a tip pressed by screws nuts.
The mast should be guyed at one or two levels.
This mast was developed for all light wight application. With a transportation length of 165cm it is easy to transport by car and can be carried on most airplanes. . The mast can be rotated by hand, or a rotator can be placed at the bottom and turn the whole mast if necessary.
hand push up mast data
| model | HP06 | HP09 | HP12 | HP15 | HP18 |
| EXTEND HEIGHT | 6m | 9m | m12m | 15m | 18m |
| RETRACTED HEIGHT | 1.7m | 18m | 2m | 2.2m | 2.5m |
| MAX LOAD | 5kg | 5kg | 5kg | 5kg | 5kg |
| SECTIONS | 4 | 6 | 7 | 8 | 9 |
| BOTTOM DIAMETER | 50mm | 60mm | 65mm | 70mm | 75mm |
winch up mast
| model | HW06 | HW09 | HW12 | HW15 | HW18 |
| EXTEND | 6M | 9 | M12M | 15M | 18M |
| RETRACTED | 1.6M | 1.8M | 2M | 2.2M | 2.5M |
| SECTIONS | 4 | 6 | 7 | 8 | 9 |
| MAX LOAD | 15KG | 15KG | 10KG | 8KG | 5KG |
| WINCH | 600LB | 800LB | 1200LB | 1500LB | 1500LB |
