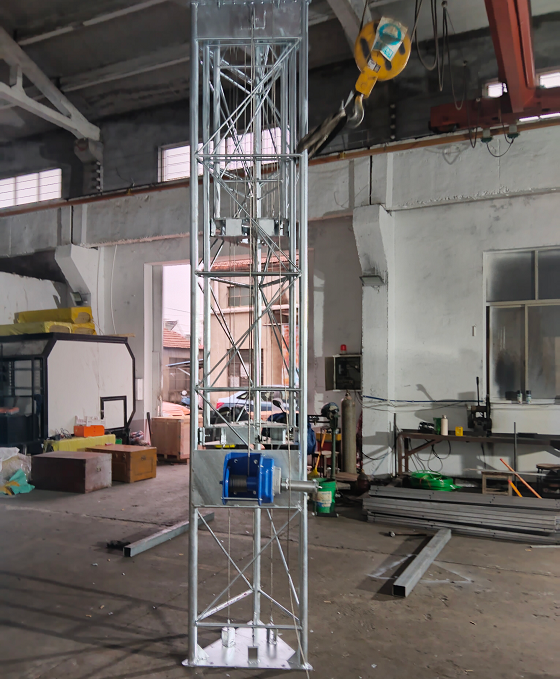

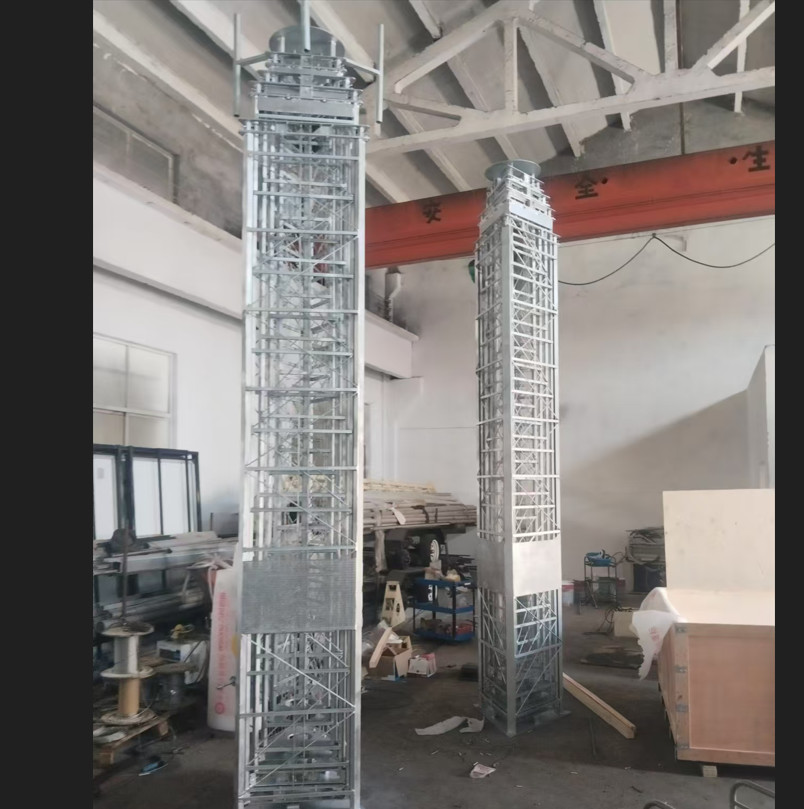

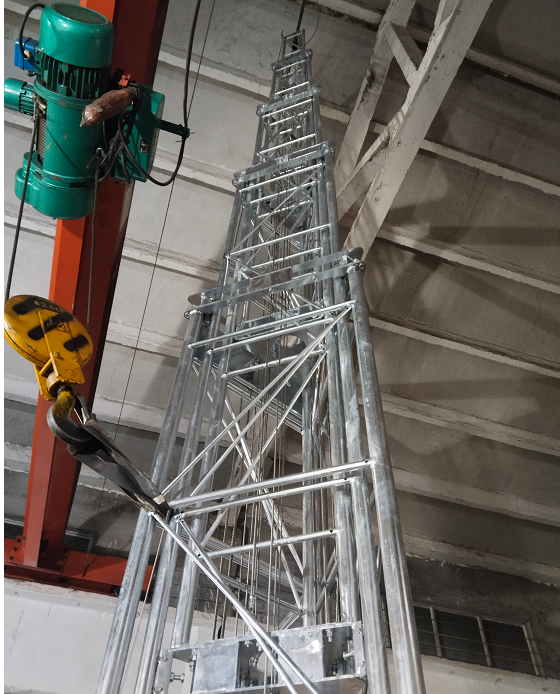

15m amateur radio antenna telescopic mast ham radio mast
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x| Material | Steel | Tower Height | 15 |
|---|---|---|---|
| Trailer | No | Erect Type | Hand Crank |
| Treatment | Galvanized | ||
| Highlight | 15m telescopic ham radio mast,amateur radio telescoping antenna mast,portable ham radio tower mast |
||
| model numner | QH15 | |
|---|---|---|
| type | lattice | |
| place of orginal | Jiangsu China | |
| Full height | 15m | |
| Closed height | 4.5 | |
| max payload | 100 | |
| No.of sections | 5 | |
| foot print | 650*650*650 | |
| material | steel | |
| color | galvanized | |
| optional color | available | |
| top connection | flange |
15m amateur radio antenna telescopic mast ham radio mast
Size: no.1 section from top to bottom (below are the same) 30*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 30*2mm, lattice bar 15*2mm
No.3 40*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 40*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 48*2.5mm, lattice bar 28*2.5mm + 20*2mm
Bottom plate 8mm thickness
![]()
![]()
![]()
