30 Ft Telescopic Antenna Mast Aluminum Hand Push Up 9m Antenna Mast Telescoping Mast
| Place of Origin | JIANGSU |
|---|---|
| Brand Name | QJ |
| Model Number | HP09 |
| Minimum Order Quantity | 1 unit |
| Price | USD 280 |
| Packaging Details | carton box |
| Delivery Time | 7days |
| Payment Terms | T/T, L/C, D/A, D/P |
| Supply Ability | 500pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum | Color | Mertal, Black, Bronze Or Custmized |
|---|---|---|---|
| Sections | 6 | Tripod | Yes Or No Optional |
| Tube Thicness | 2mm | Tube Size | Dia 35 Min. |
| High Light | 30 ft telescopic antenna mast,aluminium telescopic mast,9m antenna mast telescoping |
||
You can tick the products you need and communicate with us in the message board.
| model numner | QJ09 | |
|---|---|---|
| type | antenna mast | |
| place of orginal | Jiangsu China | |
| Full height | 9m | |
| Closed height | 1.8m | |
| max payload | 5kg | |
| No.of sections | 6 | |
| section diamter | 35/40/45/50/55/60 | |
| material | aluminum alloy | |
| color | nature color of aluminum alloy | |
| optional color | available | |
| top connection | M8/M10 screw | |
| accessories | guyed wires pack | |
| tripod | optional |
Product Description

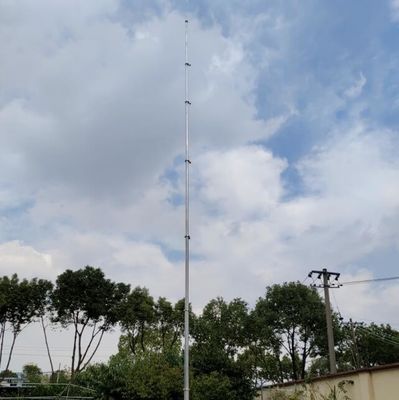

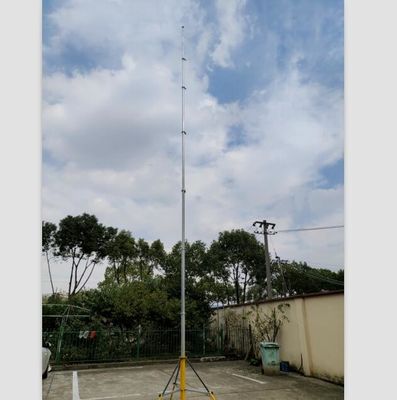

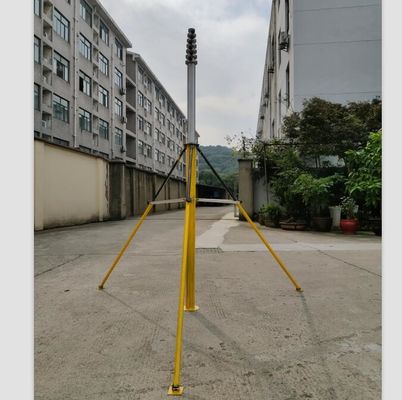

30ft aluminum telescopic mast hand push up 9m antenna mast telescoping mast
30ft aluminum telescopic mast hand push up 9m
Available in 20', 30', 40' and 50' heights. custmized height accepeted.
All QJ seriesTelescoping Masts are aluminum alloy and come assembled with hardware.
Erecting the Telescoping Mast is made by simply pushing up one section out of another unitl the spring pin stuck, then tightening the nut screw.
The unique QJ series Telescoping Mast design features exterior tube collar tip pressed on interior tube to produce a stronger and more stable joint than most common masts. This exclusive design also prevents sections from accidentally pulling apart and allows disassembly by pulling each section out through the lower end.
| model | QJ6 | QJ9 | QJ12 | QJ15 |
|---|---|---|---|---|
| extend height | 6m | 9m | 12m | 15m |
| retracted height | 1.7m | 1.8m | 2m | 2.2m |
| max load | 5kg | 5kg | 3kg | 3kg |
| no. of section | 4 | 6 | 7 | 8 |
| tubes | 35--50 | 35--60 | 35--65 | 35--70 |
