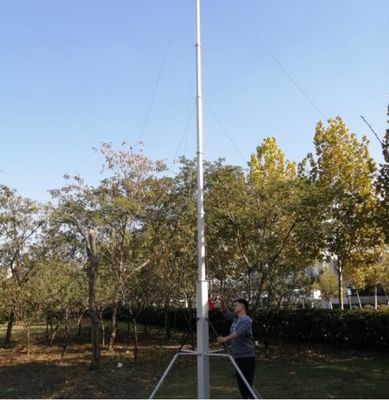

40 Ft Telescopic Antenna Mast TV Survey Station Mast Hand Crank Up Aluminum Telescoping Mast 12m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Aluminum | Max Load | 15KG |
---|---|---|---|
Sections | 5 | Extend Height | 9m |
Retracted | 1.8m | Tripod | Yes |
Color | Yellow,blue,black | ||
High Light | 40 ft telescopic antenna mast,40 telescoping antenna mast,40 foot tv antenna mast |
model numner | HP series | |
---|---|---|
type | antenna pole | |
place of orginal | Jiangsu China | |
Full height | 3m--18m | |
Closed height | 1.2m --2.5m | |
max payload | 10kg | |
No.of sections | 3--10 | |
foot print | 80mm | |
material | aluminum | |
color | nature aluminum | |
optional color | available | |
top connection | M8 screw |
survey station mast hand crank up mast 40ft antenna mast aluminum telescoping mast 12m light wight
Our sturdy aluminum telescopic masts are perfect tools for elevated photography, survey stations, antenna deployment, sports filming, internet, ideal for either quick or permanent deployments. Available in extensions from 18ft to 60ft but still very portable.
we have a wide range of telescopic masts ranging in height from 1.2 metres to over 15 metres extended height, with a range of retracted heights to suit your requirement whether it is for a vehicle or to be field mounted. Taller masts can be mounted to vehicles using one of our roof trolley systems.
The individual sections are interlocked with aluminum collar which has a tip pressed by screws nuts.
The mast should be guyed at one or two levels.
This mast was developed for all light wight application. With a transportation length of 165cm it is easy to transport by car and can be carried on most airplanes. . The mast can be rotated by hand, or a rotator can be placed at the bottom and turn the whole mast if necessary.
hand push up mast data
model | HP06 | HP09 | HP12 | HP15 | HP18 |
EXTEND HEIGHT | 6m | 9m | m12m | 15m | 18m |
RETRACTED HEIGHT | 1.7m | 18m | 2m | 2.2m | 2.5m |
MAX LOAD | 5kg | 5kg | 5kg | 5kg | 5kg |
SECTIONS | 4 | 6 | 7 | 8 | 9 |
BOTTOM DIAMETER | 50mm | 60mm | 65mm | 70mm | 75mm |
winch up mast
model | HW06 | HW09 | HW12 | HW15 | HW18 |
EXTEND | 6M | 9 | M12M | 15M | 18M |
RETRACTED | 1.6M | 1.8M | 2M | 2.2M | 2.5M |
SECTIONS | 4 | 6 | 7 | 8 | 9 |
MAX LOAD | 15KG | 15KG | 10KG | 8KG | 5KG |
WINCH | 600LB | 800LB | 1200LB | 1500LB | 1500LB |
