Portable Telecom Telescopic Cell On Wheels Tower 18m 25m 30m Lattice
| Place of Origin | jiangsu |
|---|---|
| Brand Name | QJ |
| Model Number | QT09 |
| Minimum Order Quantity | 1 unit |
| Price | 1200USD |
| Packaging Details | wooden box |
| Delivery Time | 20days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 200 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Type | Lattice Tower |
|---|---|---|---|
| Erecting Type | Hand Winch Or Electric | Extend | 18m |
| Retracted | 5.5m | Sections | 5 |
| Max Load | 80kg--500kg | Treatment | Galvanized |
| Highlight | 25m portable telecom tower,18m portable telecom tower,30m portable telecom tower |
||
You can tick the products you need and communicate with us in the message board.
| model numner | QT09 | |
|---|---|---|
| type | lattice tower | |
| place of orginal | Jiangsu China | |
| Full height | 18 | |
| Closed height | 5.5 | |
| max payload | 200kg | |
| No.of sections | 5 | |
| foot print | 600*600mm | |
| material | steel | |
| color | galvanized | |
| optional color | available | |
| top connection | flange | |
| accessories | guyed wires pack | |
Product Description

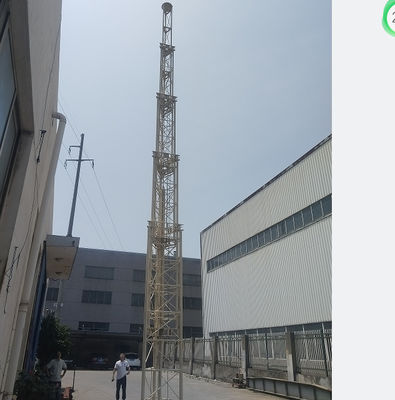

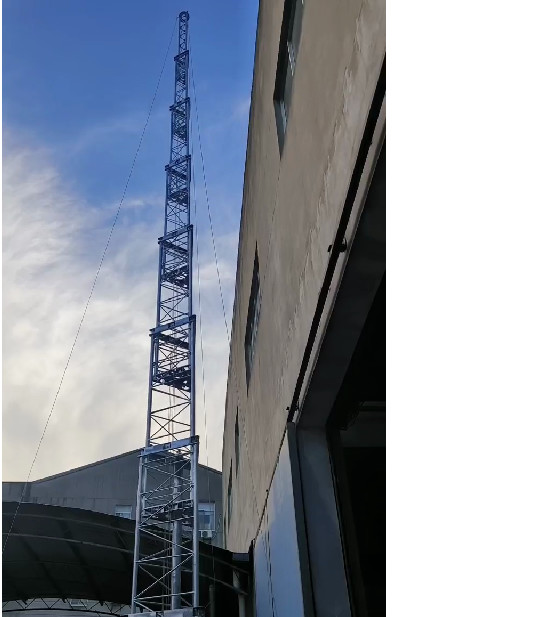

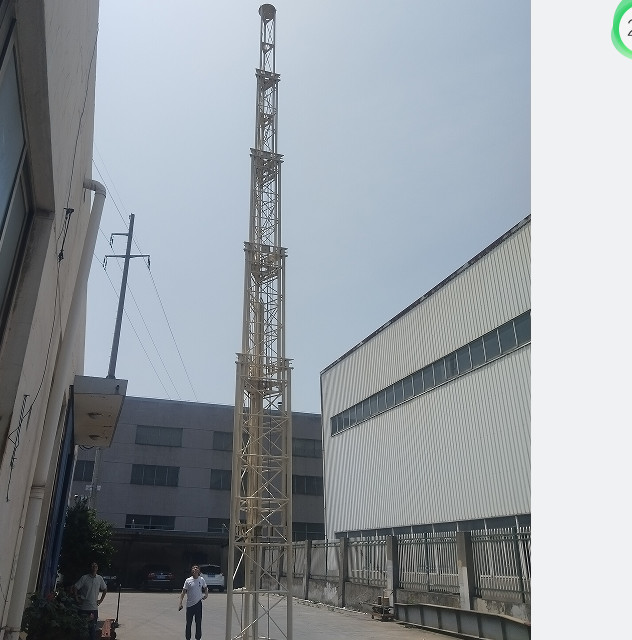

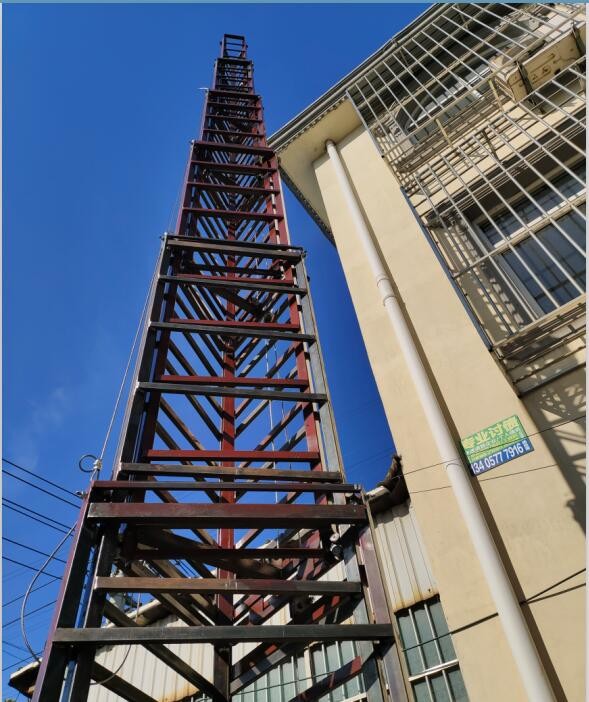

portable telecom tower telescopic cell on wheels tower 18m 25m 30m lattice tower
Brief instruction
Our portable telescopic towers are designed for heavy targets lifting, the conception of safe, fast running, easy to operate and maintenance during design make this tower become a star products on market.

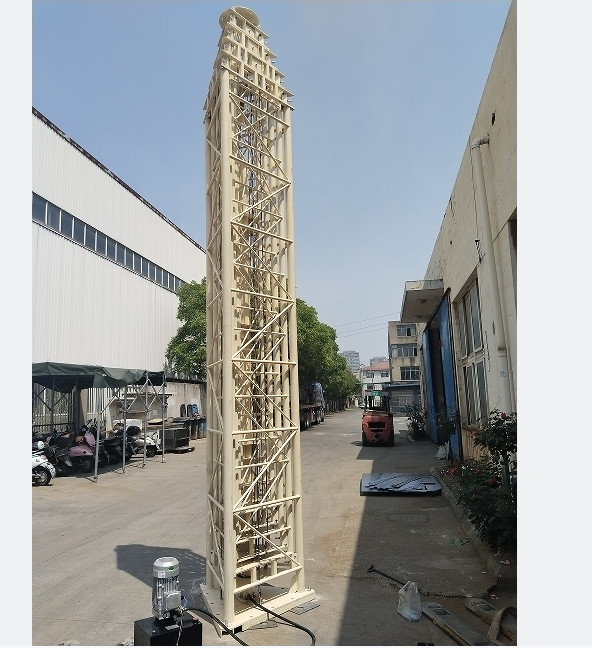

Tower constructions:
Material: Q235 steel
Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm
Bottom plate 12mm thickness
- Steel rope: stainless steel
5mm-- 7*19 type, reasonable load 443kg-break force1329kg
6mm-- 7*19 type, reasonable load 638kg-break force1914kg
8mm--7*19 type, reasonable load 1134kg-break force3403kg
- Bearing
15*35*11 roller rod bearing, max load 500kg per pc
- Hydraulic cylinder
4KW motor, max load 1.5 ton
| model | QT9 | QT15 | QT20 | QT25 | QT30 |
| EXTEND HEIGHT | 9M | 15M | 20M | 25M | 30M |
| RETRACTED HEIGHT | 3M | 4M | 5M | 6M | 6.5M |
| MAX LOAD | 200kg | 200kg | 200kg | 200kg | 200kg |
| NO.SECTIONS | 4 | 5 | 5 | 6 | 7 |
| LIFT TYPE | winch | winch/hydraulic | hydraulic | hydraulic | hydraulic |
