Portable Static Lattice Steel Telescopic Tower Radio Amateur 30m 100ft
| Place of Origin | jiangsu |
|---|---|
| Brand Name | QJ |
| Model Number | QT30 |
| Minimum Order Quantity | 1 unit |
| Price | 9500USD |
| Packaging Details | wooden box |
| Delivery Time | 20days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 200 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Type | Lattice Tower |
|---|---|---|---|
| Erecting Type | Hand Winch Or Electric | Extend | 18m |
| Retracted | 5.5m | Sections | 5 |
| Max Load | 80kg--500kg | Treatment | Galvanized |
| Highlight | steel portable telescopic tower,100ft portable telescopic tower,30m portable telescopic tower |
||
You can tick the products you need and communicate with us in the message board.
| model numner | QT09 | |
|---|---|---|
| type | lattice tower | |
| place of orginal | Jiangsu China | |
| Full height | 25 | |
| Closed height | 6.5 | |
| max payload | 200kg | |
| No.of sections | 6 | |
| foot print | 600*600mm | |
| material | steel | |
| color | galvanized | |
| optional color | available | |
| top connection | flange | |
| accessories | guyed wires pack | |
Product Description

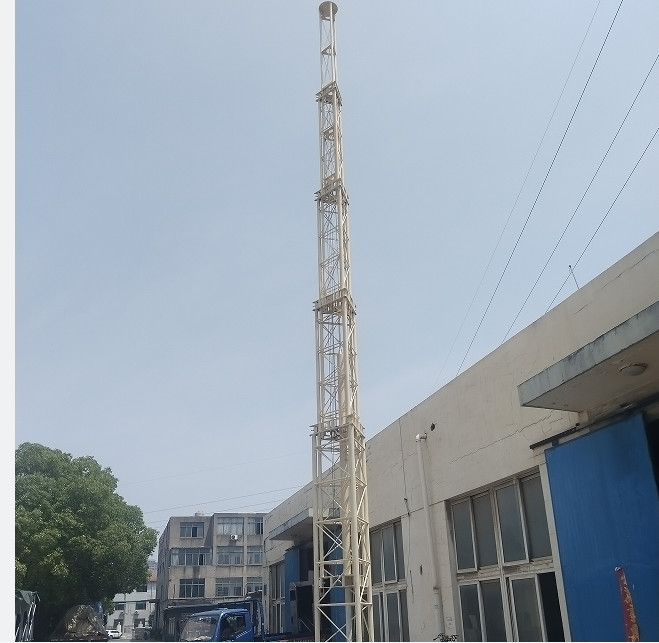

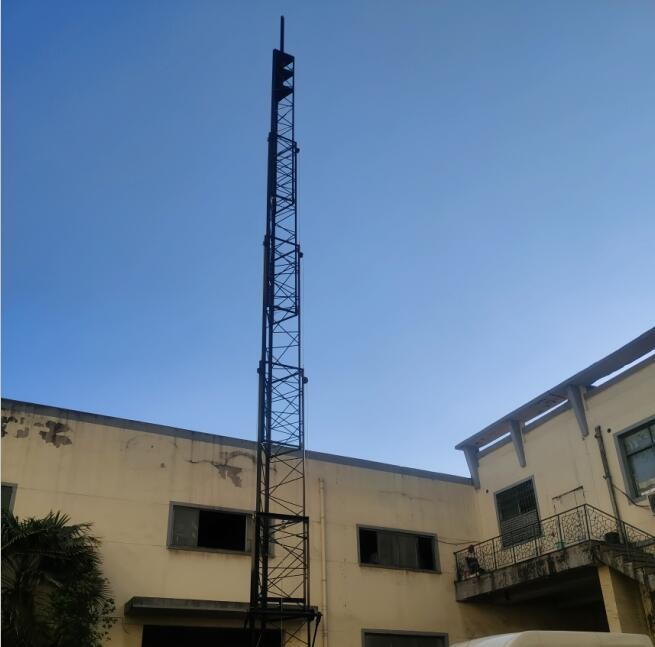

portable Static Lattice Telescopic radio amateur telescopic tower 30m 100ft steel tower

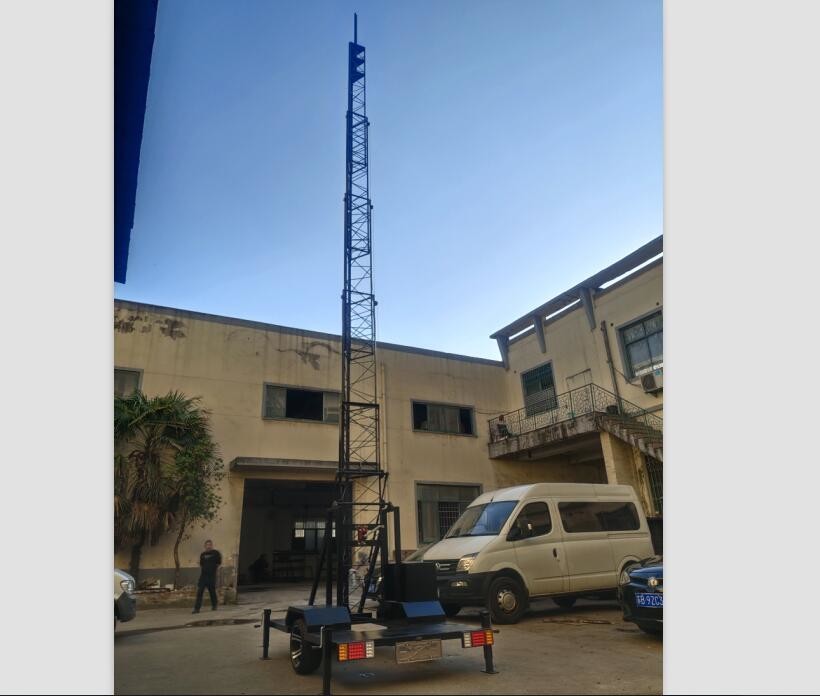

Telescopic Tower for All Temporary Applications; Communication, Camera Surveillance, Radio Amateur, etc
Wherever you need a temporary mast we have the solution - or you simply dont like to climb... A range of telescopic towers are available with unique features, never seen before. We are using inter section roller bearings, making the tower extremely stable at any height and more importantly compared to other telescopic design, the tower do not jam due to side wind. Our telescopic towers WILL come down in heavy side wind.
It is a top-quality product designed for professional use in locations where function, quality and service life are a priority. Our telescopic tower range comes with a maximum height of 21 metres and consists of three sections as well as a tilt over stand.

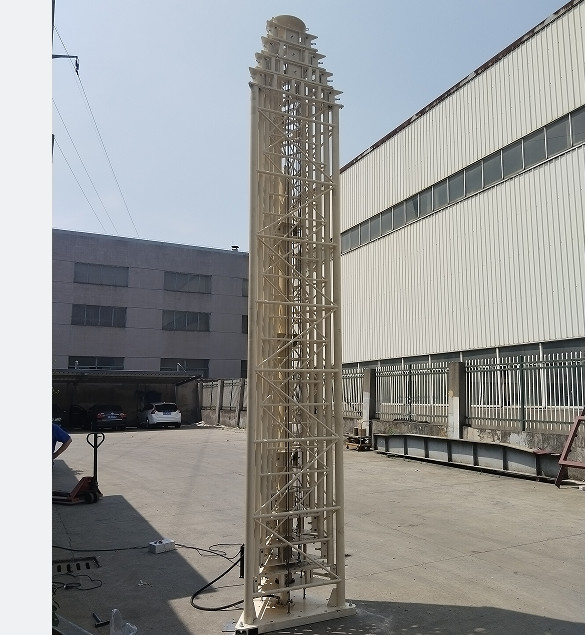

The tilt over stand is used to raise the mast from its horizontal resting point to its vertical position after which it is ready to be raised to its full height.
It is a top-quality product designed for professional use in locations where function, quality and service life are a priority. Our telescopic tower range comes with a maximum height of 21 metres and consists of three sections as well as a tilt over stand.
The tilt over stand is used to raise the mast from its horizontal resting point to its vertical position after which it is ready to be raised to its full height.
Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 25*2.5mm + 20*2mm
No.6 76*2.5mm, lattice bar 25*2.5mm + 20*2mm
Bottom plate 12mm thickness
5mm-- 7*19 type, reasonable load 443kg-break force1329kg
6mm-- 7*19 type, reasonable load 638kg-break force1914kg
8mm--7*19 type, reasonable load 1134kg-break force3403kg
- Bearing
15*35*11 roller rod bearing, max load 500kg per pc
- Hydraulic cylinder
4KW motor, max load 1.5 ton
| model | QT9 | QT15 | QT20 | QT25 | QT30 |
| EXTEND HEIGHT | 9M | 15M | 20M | 25M | 30M |
| RETRACTED HEIGHT | 3M | 4M | 5M | 6M | 6.5M |
| MAX LOAD | 200kg | 200kg | 200kg | 200kg | 200kg |
| NO.SECTIONS | 4 | 5 | 5 | 6 | 7 |
| LIFT TYPE | winch | winch/hydraulic | hydraulic | hydraulic | hydraulic |
