Lattice 30m Portable Telecom Telescopic Cell On Wheels Tower
| Place of Origin | jiangsu |
|---|---|
| Brand Name | QJ |
| Model Number | QT30 |
| Minimum Order Quantity | 1 unit |
| Price | 9500USD |
| Packaging Details | wooden box |
| Delivery Time | 20days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 200 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Type | Lattice Tower |
|---|---|---|---|
| Erecting Type | Hand Winch Or Electric | Extend | 18m |
| Retracted | 5.5m | Sections | 5 |
| Max Load | 80kg--500kg | Treatment | Galvanized |
| Highlight | telescopic cell on wheels tower,lattice portable telecom tower,30m portable telecom tower |
||
You can tick the products you need and communicate with us in the message board.
| model numner | QT09 | |
|---|---|---|
| type | lattice tower | |
| place of orginal | Jiangsu China | |
| Full height | 30 | |
| Closed height | 6.5 | |
| max payload | 200kg | |
| No.of sections | 7 | |
| foot print | 600*600mm | |
| material | steel | |
| color | galvanized | |
| optional color | available | |
| top connection | flange | |
| accessories | guyed wires pack | |
Product Description

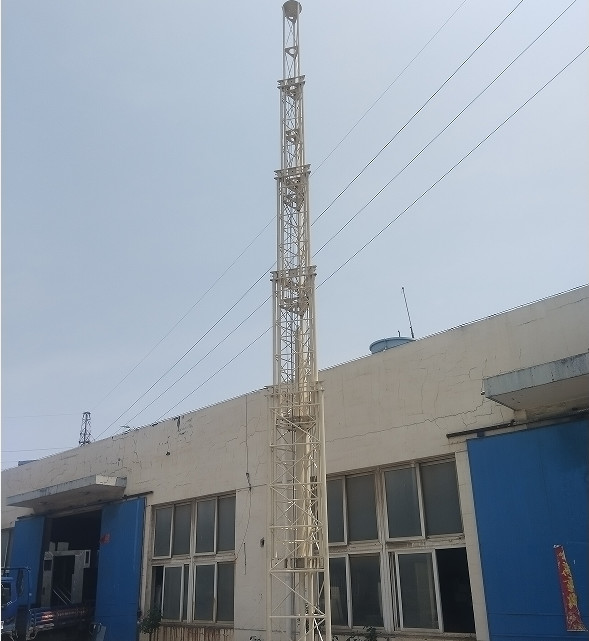

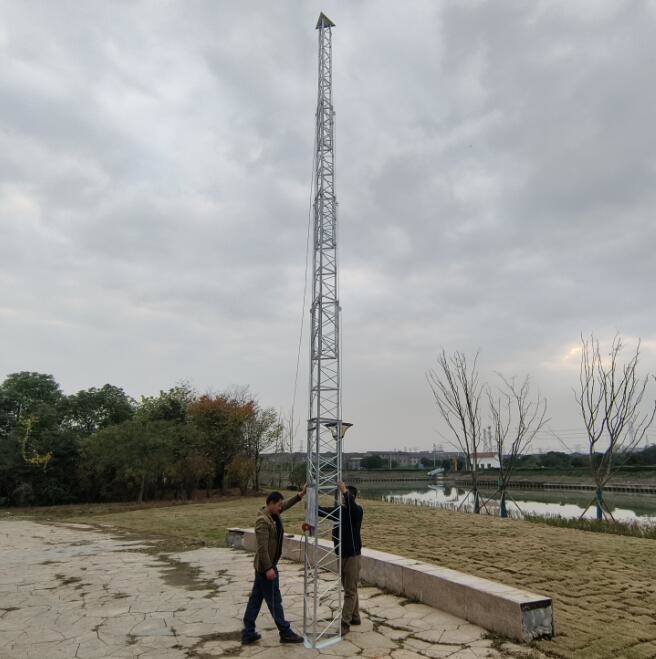

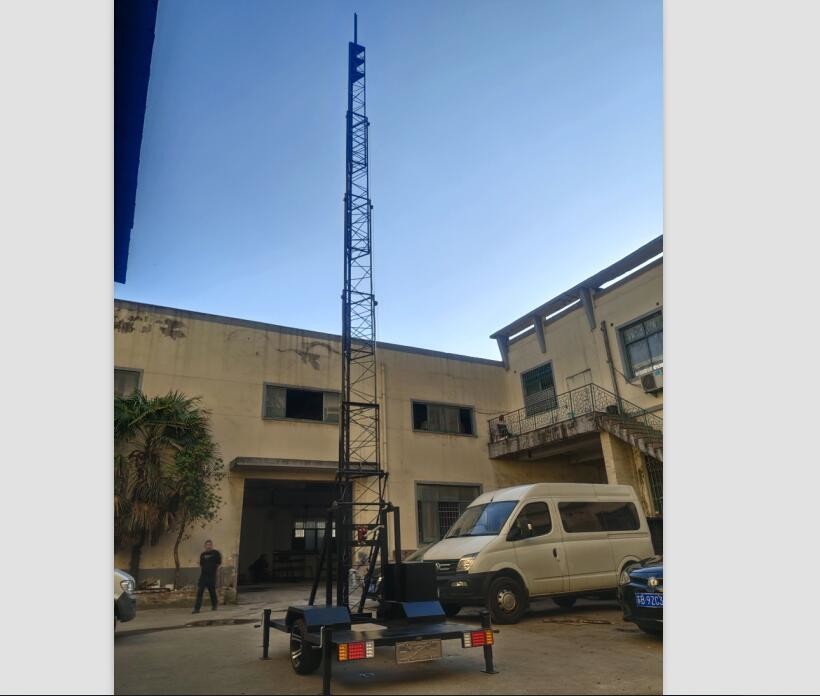

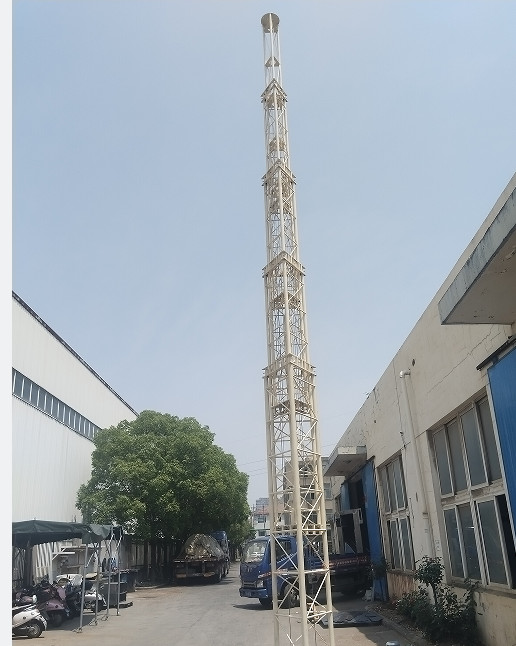

lattice tower 30m portable telecom tower telescopic cell on wheels tower
Brief instruction
Our portable telescopic towers are designed for heavy targets lifting, the conception of safe, fast running, easy to operate and maintenance during design make this tower become a star products on market.

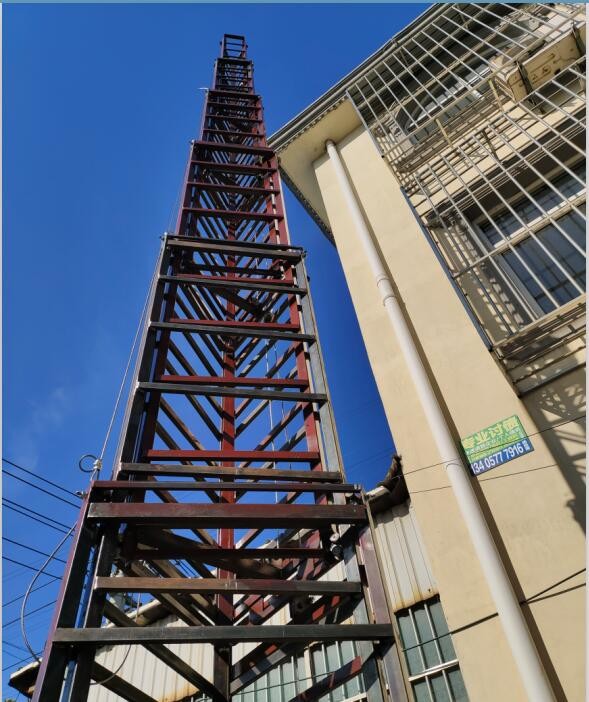

Tower constructions:
Material: Q235 steel
Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 25*2.5mm + 20*2mm
No.5 76*2.5mm, lattice bar 25*2.5mm + 20*2mm
No.5 86*2.5mm, lattice bar 30*2.5mm + 25*2mm
Bottom plate 12mm thickness
5mm-- 7*19 type, reasonable load 443kg-break force1329kg
6mm-- 7*19 type, reasonable load 638kg-break force1914kg
8mm--7*19 type, reasonable load 1134kg-break force3403kg
- Bearing
15*35*11 roller rod bearing, max load 500kg per pc

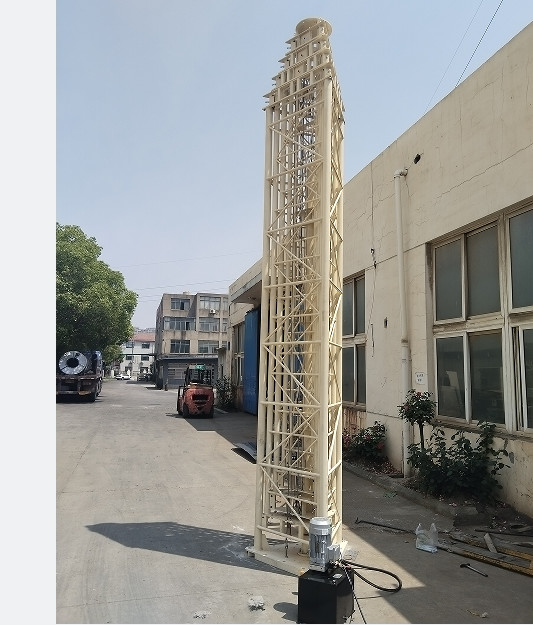

- Hydraulic cylinder
4KW motor, max load 1.5 ton
| model | QT9 | QT15 | QT20 | QT25 | QT30 |
| EXTEND HEIGHT | 9M | 15M | 20M | 25M | 30M |
| RETRACTED HEIGHT | 3M | 4M | 5M | 6M | 6.5M |
| MAX LOAD | 200kg | 200kg | 200kg | 200kg | 200kg |
| NO.SECTIONS | 4 | 5 | 5 | 6 | 7 |
| LIFT TYPE | winch | winch/hydraulic | hydraulic | hydraulic | hydraulic |
