35m Telecom Tower Cell Site On Wheels Motorized Lattice Tower Portable COWs With Shelters

35m telecom tower Cell Site on Wheels Motorized Lattice tower portable COWs With Shelters

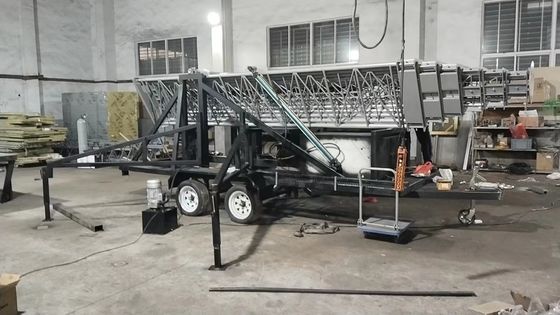

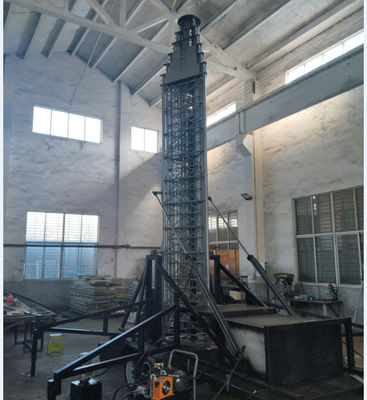

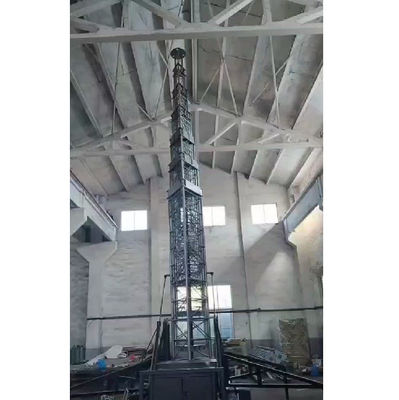

These motorized lattice towers are offered in extended heights of 55'-60', 80'-85', 106'-120' and 150'. For towers 120' and taller, the trailers come standard with dual 12,000 lb axles and the decks are coverd with either galvanized steel or aluminum tread plate. In addition, there are (4) galvanized outriggers provided which transport attached to the sides of the trailer or that pull out similar to our pneumatic trailers. We have details and photos on our Cell Site Trailers product page regarding or motorized lattice towers and outriggers. The big difference is that the trailers equipped with our lattice towers and our shelters are larger than any of our other trailers, and have a low boy section behind the tongue and in front of the rear deck in order to install the shelter under the lattice tower. These trailers are typically equipped with gooseneck tongues for fifth wheels, but they can be setup as bumper pull trailers as well.

We can custom design and build these CSOWs in any size requirements for any application. In addition, we can integrate the customer owned equipment into this product, creating a turn key solution. Our standard warranty on the trailer is 3 years, our standard warranty on the shelter is 1 year and our integration warranty is 1 year; all other OEM material is warranted by the original manufacturers.

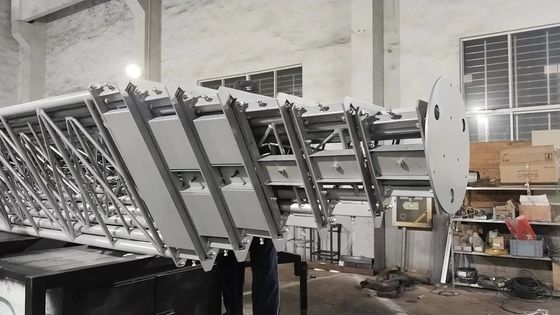

Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm

No.2 48*2mm, lattice bar 15*2mm

No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm

Bottom plate 12mm thickness

A cell on wheels, commonly known as a COW, can be quickly delivered to any site for emergency coverage on a short-term basis

Our COW help ensure a strong communication network, even in remote locations.Traditional portable towers are often limited by instability and payload capacity restrictions.

Our towers are made with galvanized steel  body that makes them resistant to corrosive elements and provides enough strength to carry payloads over 500 kgs. Towers can be towed easily and set up anywhere regardless of terrain or uneven surfaces, making them ideal for any situation.

Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm

No.2 48*2mm, lattice bar 15*2mm

No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm

No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm

Bottom plate 12mm thickness

Additionally, our communications towers can be deployed quickly and efficiently.

Each section was lifter by 3 seperated steel ropes, any emmergency broken one of them, the tower still safe with out collaps.
