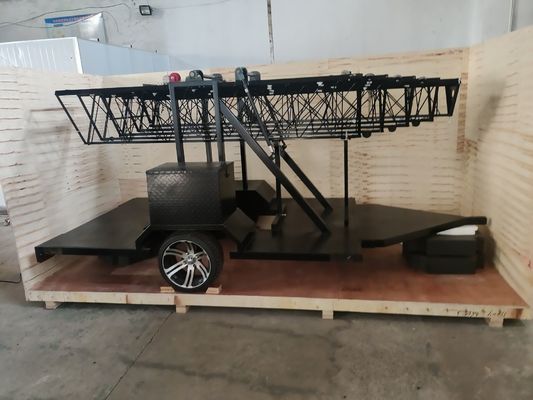

Portable Tower 10m Mini Mobile Cell Tower 12m Crank Up Tower With Shelter
| Place of Origin | jiangsu |
|---|---|
| Brand Name | QJ |
| Model Number | QC12 |
| Minimum Order Quantity | 1 unit |
| Price | 35000 |
| Packaging Details | bulk |
| Delivery Time | 30 days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Tower Height | 12m |
|---|---|---|---|
| Trailer | 4 Wheels | Erect Type | Crank |
| Tower Tilt Type | Manual | Treatment | Galvanized |
| Highlight | portable tower with shelter,10m Mini Mobile Cell Tower,12m crank up tower |
||
You can tick the products you need and communicate with us in the message board.
| model numner | QJ30 | |
|---|---|---|
| type | cow/cell on wheels | |
| place of orginal | Jiangsu China | |
| Full height | 10 | |
| Closed height | 3.5 | |
| max payload | 100kg | |
| No.of sections | 4 | |
| foot print | 3000*2000*3800 | |
| material | steel | |
| color | galvanized | |
| optional color | available | |
| top connection | flange | |
| trailer | two shaft | |
| spare tire | yes | |
| tool box | yes | |
| fold able support leg | 4 | |
| motor | 3kw | |
| power | 220V |
Product Description
portable tower 40ft Mini Mobile Cell Tower 12m crank up tower with shelter
Are you looking for mobile cell towers? we’re prepared to give you the mobile towers you need that will meet your project’s requirements. We have a variety of portable cell towers for sale, and our team is ready to help you find exactly what you desire. Here are a few mobile cell phone towers we have in stock that are ready to ship out:
Mini Mobile Cell Tower--10m
Our Mini Tower is perfect for fast setup operations. This tower has 3,500 pound axles, can support 500 pounds, can withstand 90 mph maximum wind speeds and can quickly be deployed in 30-minutes or less. Perfect for quickly getting telecommunications up and running during natural disasters or providing a private and secure network, this tower is definitely a must-have in your cell on wheels fleet.
Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm
Bottom plate 12mm thickness
A cell on wheels, commonly known as a COW, can be quickly delivered to any site for emergency coverage on a short-term basis
Our COW help ensure a strong communication network, even in remote locations.Traditional portable towers are often limited by instability and payload capacity restrictions.
Our towers are made with galvanized steel body that makes them resistant to corrosive elements and provides enough strength to carry payloads over 500 kgs. Towers can be towed easily and set up anywhere regardless of terrain or uneven surfaces, making them ideal for any situation.
Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm
Bottom plate 12mm thickness
Additionally, our communications towers can be deployed quickly and efficiently.
Each section was lifter by 3 seperated steel ropes, any emmergency broken one of them, the tower still safe with out collaps.
| model | QT10 | QT15 | QT20 | QT25 | QT30 |
| tower height | 10m | 15m | 20m | 25m | 30m |
| max load | 500kg | 500kg | 400kg | 300kg | 300kg |
| tilt type | manual/ hydraulic |
manual / hydraulic
|
hydraulic | hydraulic | hydraulic |
| lifting type | manual/hydraulic/winch | hmanual /hydraulic/winch | hydraulic/winch | hydraulic | hydraulic |
| no. stage | 4 | 5 | 5 | 6 | 7 |
| trailer with extend legs | 2 wheels | 4 | 4 | 4 | 4 |
| shelter | y/n | y/n | y/n | y/n | y/n |
