RAPID DEPLOYMENT Trailer Tower With Shelter Cell On Wheels COW 100ft Tower Height 30m
| Place of Origin | jiangsu |
|---|---|
| Brand Name | QJ |
| Model Number | QC12 |
| Minimum Order Quantity | 1 unit |
| Price | 35000 |
| Packaging Details | bulk |
| Delivery Time | 30 days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Tower Height | 12m |
|---|---|---|---|
| Trailer | 4 Wheels | Erect Type | Crank |
| Tower Tilt Type | Manual | Treatment | Galvanized |
| Highlight | 30m Trailer Tower,Shelter Cell Trailer Tower,100ft Trailer Tower |
||
You can tick the products you need and communicate with us in the message board.
| model numner | QJ30 | |
|---|---|---|
| type | cow/cell on wheels | |
| place of orginal | Jiangsu China | |
| Full height | 30m | |
| Closed height | 7m | |
| max payload | 200kg | |
| No.of sections | 6 | |
| foot print | 7000*2250*4000m | |
| material | steel | |
| color | galvanized | |
| optional color | available | |
| top connection | flange | |
| trailer | two shaft | |
| spare tire | yes | |
| tool box | yes | |
| fold able support leg | 4 | |
| motor | 3kw | |
| power | 220V |
Product Description

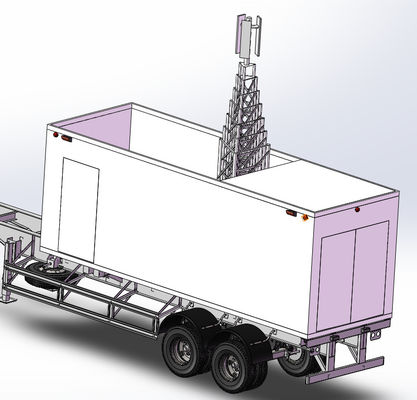

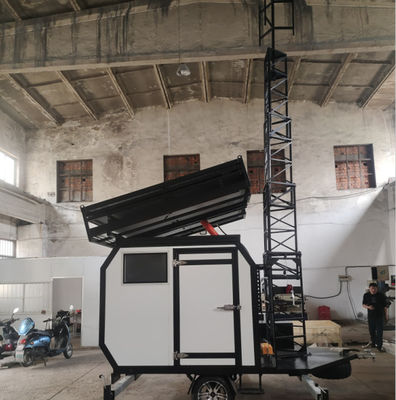

RAPID DEPLOYMENT Trailer Tower with Shelter Cell on Wheels (COW) 100ft tower height 30m
Our trailer tower systems are used throughout the world as mobile command centers, cell-on-wheels (COWs), emergency communication centers, incident command posts, and many other applications across a multitude of industries. They are ideal for establishing communications when and where necessary and in a short timeframe. Our built-to-order portable trailer towers are manufactured to last, with unsurpassed workmanship and high-quality materials going into every product. Not only are our trailer tower systems built for durability and reliability, but they are also user-friendly and simple to deploy. We proudly offer an extensive line of trailer towers with and without shelters to meet any requirements necessary.
Are you looking for mobile cell towers? we’re prepared to give you the mobile towers you need that will meet your project’s requirements. We have a variety of portable cell towers for sale, and our team is ready to help you find exactly what you desire. Here are a few mobile cell phone towers we have in stock that are ready to ship out:
Mobile Cell Tower--20m/25m/30m/35m/40m
Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm
Bottom plate 12mm thickness
A cell on wheels, commonly known as a COW, can be quickly delivered to any site for emergency coverage on a short-term basis
Our COW help ensure a strong communication network, even in remote locations.Traditional portable towers are often limited by instability and payload capacity restrictions.
Our towers are made with galvanized steel body that makes them resistant to corrosive elements and provides enough strength to carry payloads over 500 kgs. Towers can be towed easily and set up anywhere regardless of terrain or uneven surfaces, making them ideal for any situation.
Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm
Bottom plate 12mm thickness
Additionally, our communications towers can be deployed quickly and efficiently.
Each section was lifter by 3 seperated steel ropes, any emmergency broken one of them, the tower still safe with out collaps.
| model | QT10 | QT15 | QT20 | QT25 | QT30 |
| tower height | 10m | 15m | 20m | 25m | 30m |
| max load | 500kg | 500kg | 400kg | 300kg | 300kg |
| tilt type | manual/ hydraulic |
manual / hydraulic
|
hydraulic | hydraulic | hydraulic |
| lifting type | manual/hydraulic/winch | hmanual /hydraulic/winch | hydraulic/winch | hydraulic | hydraulic |
| no. stage | 4 | 5 | 5 | 6 | 7 |
| trailer with extend legs | 2 wheels | 4 | 4 | 4 | 4 |
| shelter | y/n | y/n | y/n | y/n | y/n |
