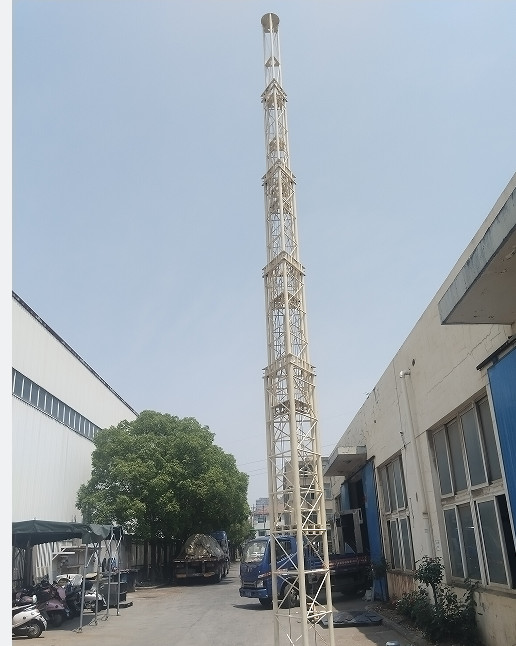

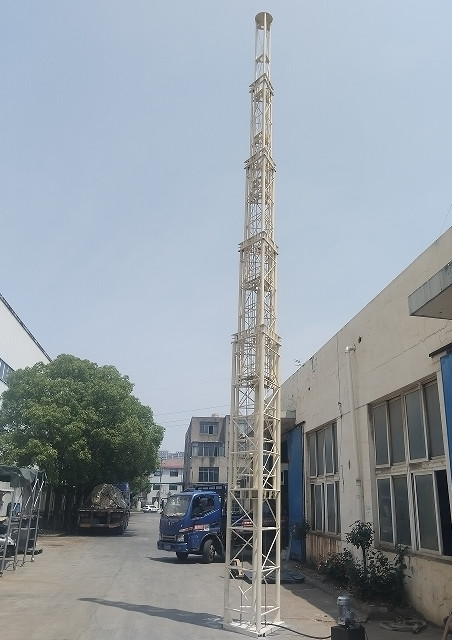

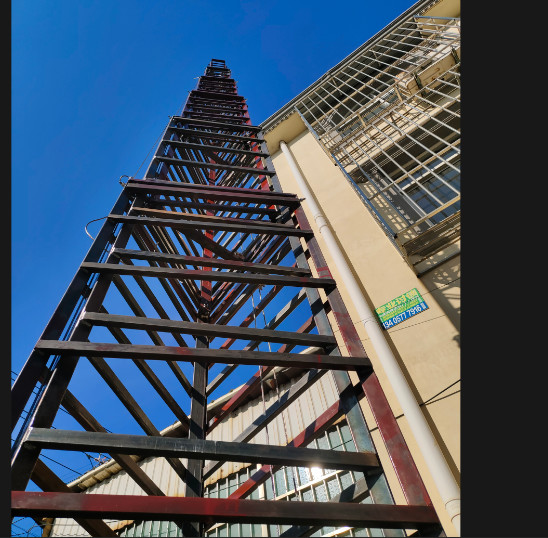

Portable Static Lattice Telescopic Tower 25m Customizable Height High Payload

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Steel | Type | Lattice Tower |
---|---|---|---|
Erecting Type | Hand Winch Or Electric | Extend | 18m |
Retracted | 5.5m | Sections | 5 |
Max Load | 80kg--500kg | Treatment | Galvanized |
Highlight | 25m portable Static Lattice Telescopic Tower,25m steel telescopic tower,High Payload steel telescopic tower |
model numner | QT09 | |
---|---|---|
type | lattice tower | |
place of orginal | Jiangsu China | |
Full height | 25 | |
Closed height | 6.5 | |
max payload | 200kg | |
No.of sections | 6 | |
foot print | 600*600mm | |
material | steel | |
color | galvanized | |
optional color | available | |
top connection | flange | |
accessories | guyed wires pack | |
75ft lattice tower 25m portable telecom tower telescopic cell on wheels tower
Brief instruction
Our static towers are used when payload acquisition and accessibility are necessary, but transportation of the tower system is not required. Systems can be designed with telescopic and pivoting functions to allow removal, replacement, or interchange of the top-mounted payload.
The towers allows users to configure their system as operational demands change over the lifetime of the product.

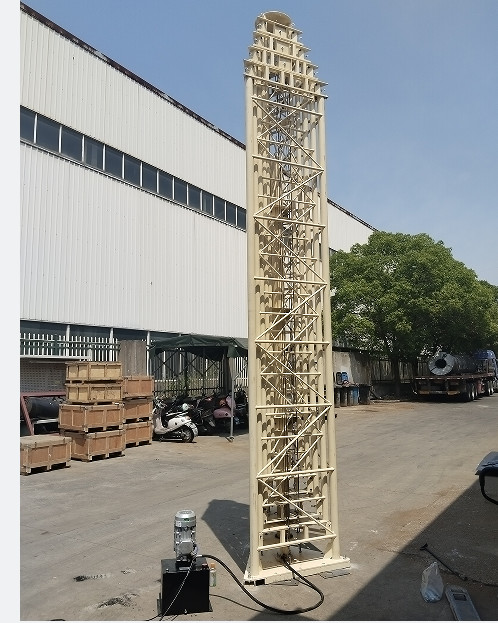

Tower constructions:
Material: Q235 steel
Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 25*2.5mm + 20*2mm
No.6 76*2.5mm, lattice bar 25*2.5mm + 20*2mm
Bottom plate 12mm thickness
5mm-- 7*19 type, reasonable load 443kg-break force1329kg
6mm-- 7*19 type, reasonable load 638kg-break force1914kg
8mm--7*19 type, reasonable load 1134kg-break force3403kg
- Bearing
15*35*11 roller rod bearing, max load 500kg per pc
- Hydraulic cylinder
4KW motor, max load 1.5 ton
model | QT9 | QT15 | QT20 | QT25 | QT30 |
EXTEND HEIGHT | 9M | 15M | 20M | 25M | 30M |
RETRACTED HEIGHT | 3M | 4M | 5M | 6M | 6.5M |
MAX LOAD | 200kg | 200kg | 200kg | 200kg | 200kg |
NO.SECTIONS | 4 | 5 | 5 | 6 | 7 |
LIFT TYPE | winch | winch/hydraulic | hydraulic | hydraulic | hydraulic |
